Straight Hole Brass Distributor
![<!--<$[標(biāo)題]>begin-->Straight Hole Brass Distributor<!--<$[標(biāo)題]>end-->](/picture/0/47d161b828ac473ab94ad81ab46cbe69.png)
Straight Hole Brass Distributor is mainly used for refrigerant uniform distribution in room, module machine，VRV, unit machine air conditioning systems
Material：C3771HPb59-1
Maximum Working Pressure：4.5Mpa
Medium Temperature：-40℃~130℃
Applicable Refrigerants：R410A、R32、R134a、R404A、R507、R290、R407C、R22
Purpose:lt is mainly used for refrigerant uniform distribution in room, module machine，VRV, unit machine air conditioning systems
SPECIFICATION (Unit: mm)
No. | Dimensions | Hole No. | |||
A | B | D | E | ||
1 | 35 | 6.1 | 7.1 | 18 | 3 |
2 | 35 | 6.1 | 7.1 | 18 | 2 |
3 | 35 | 6.1 | 8.1 | 18 | 2 |
4 | 35 | 6.1 | 8.1 | 22 | 4 |
5 | 37 | 6.1 | 7.1 | 22 | 4 |
6 | 27 | 6.1 | 9.6 | 21 | 3 |
7 | 35 | 7.1 | 7.1 | 20 | 2 |
Note: The products can be customized by drawings

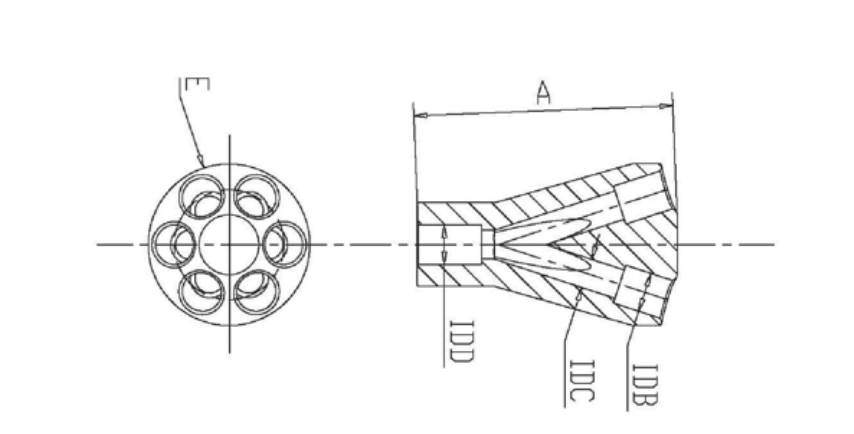

DIMENSIONS
